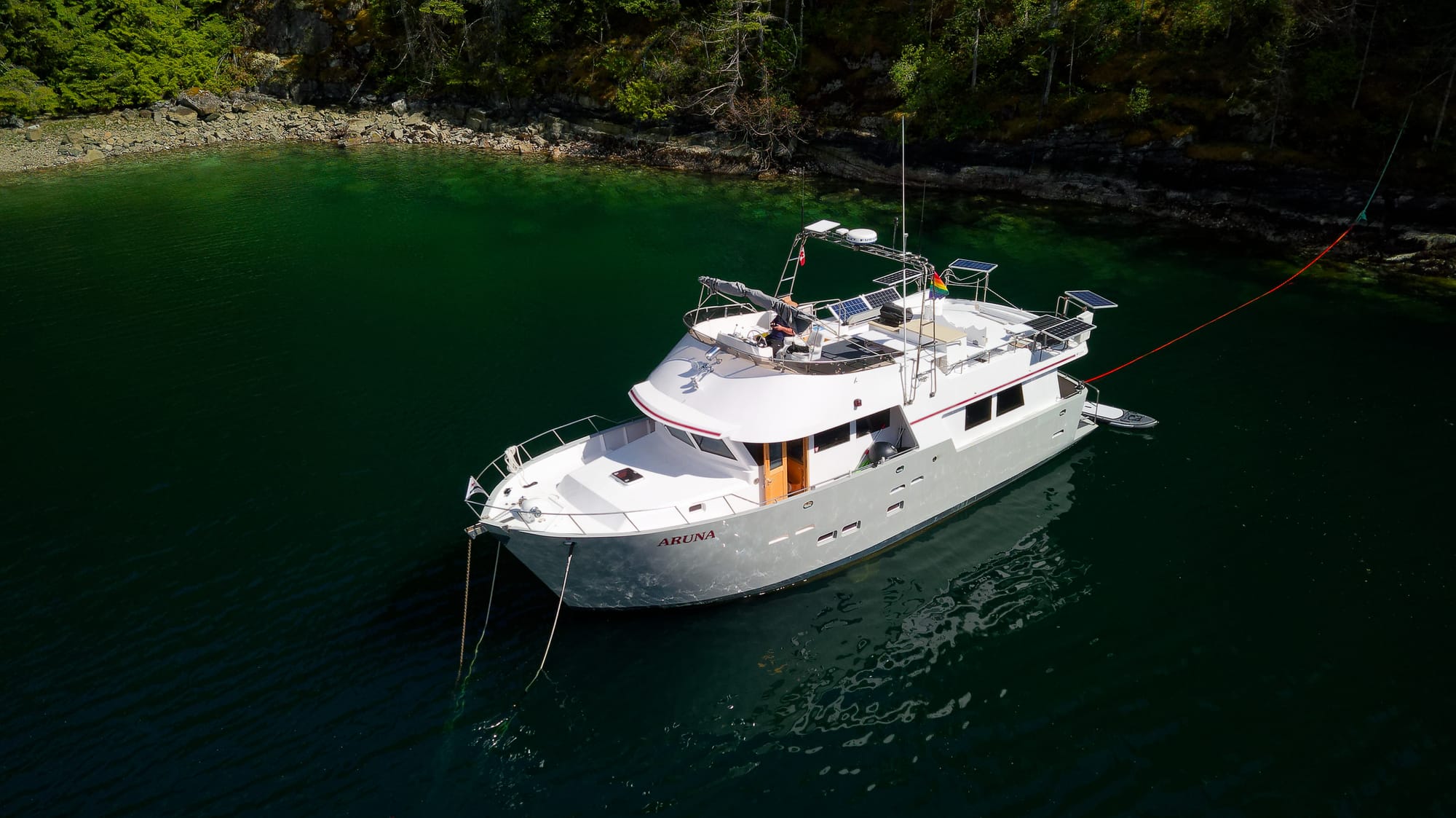

Aruna is a 2003 Kristen Yachts 50 Pilot House steel trawler that became part of the family in December of 2023.
Aruna is a steel trawler hull, #3 built by Kristen Yachts of British Columbia, Canada, a manufacturer of blue water sailboats and trawler yachts. She is a Greg Marshall design. Kristen built seven trawlers in varying sizes from 46-62'. She has various features including a get-home hydraulic power takeoff from the generator with separate shaft, active fin stabilization, bow & stern thruster, diesel heating, air conditioning, and fuel consumption of only 3-4 gallons per hour.
Specifications
- Length Overall: 52'
- Length On Deck: 50' 4"
- Length At Water Line: 46'
- Beam: 15' 9"
- Draft: 5' 9"
- Weight: 90,000 pounds
- Steel Hull Construction
- Steel Deck Construction
- Steel Superstructure Construction
Propulsion
- Main engine: Isuzu model A-6RB1T - 320 HP - marinized by Klassen Diesel
- Keel cooled, wet exhaust
- Additional get-home hydraulic shaft and propeller run off of generator
Tankage
- Fuel - 1,100 Gallons in 4 Steel Tanks
- Water - 300 Gallons in single aluminum tank (forward under guest V-berth)
- Waste - 90 gallons in single poly tank

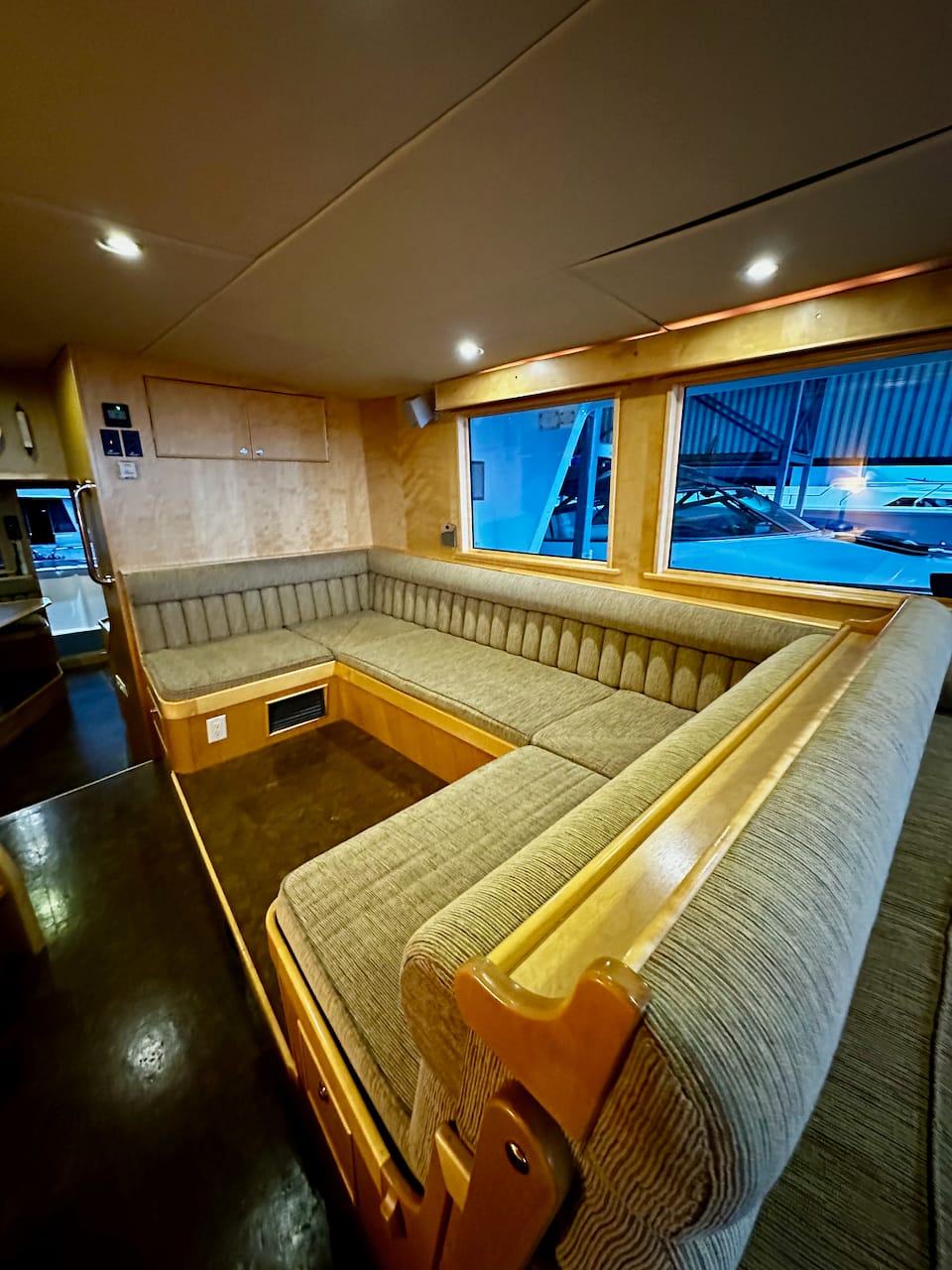

Lounge

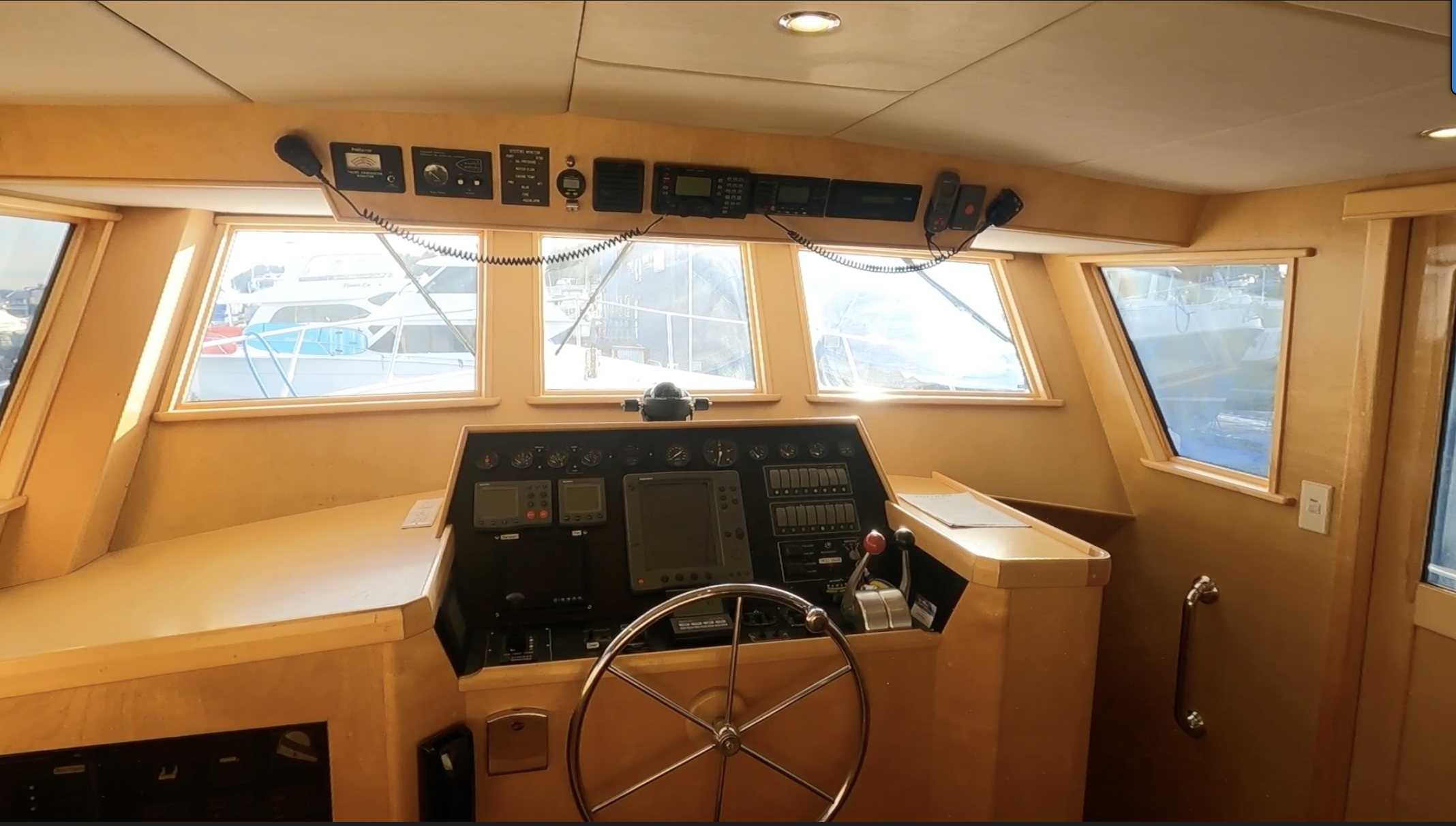

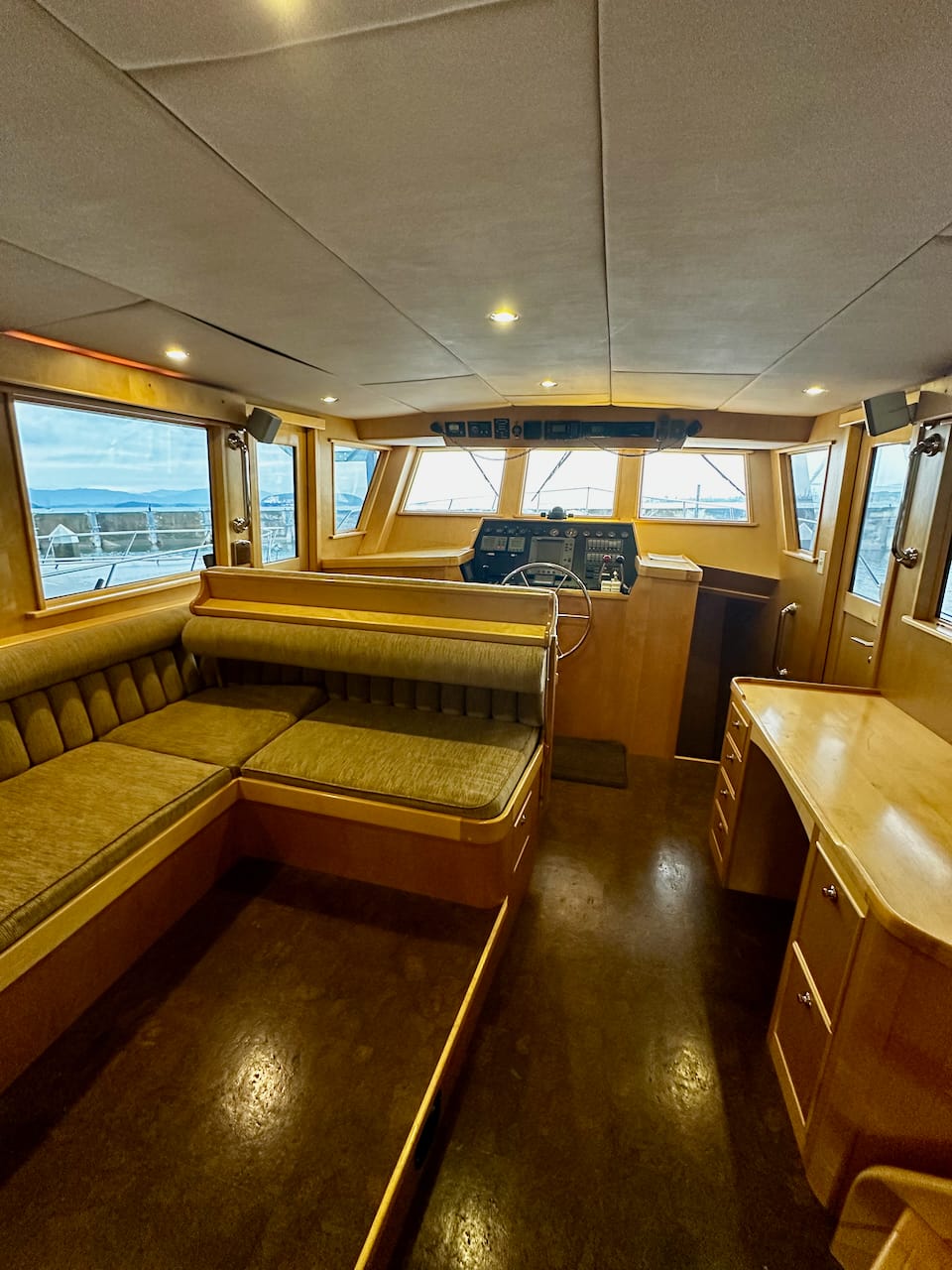

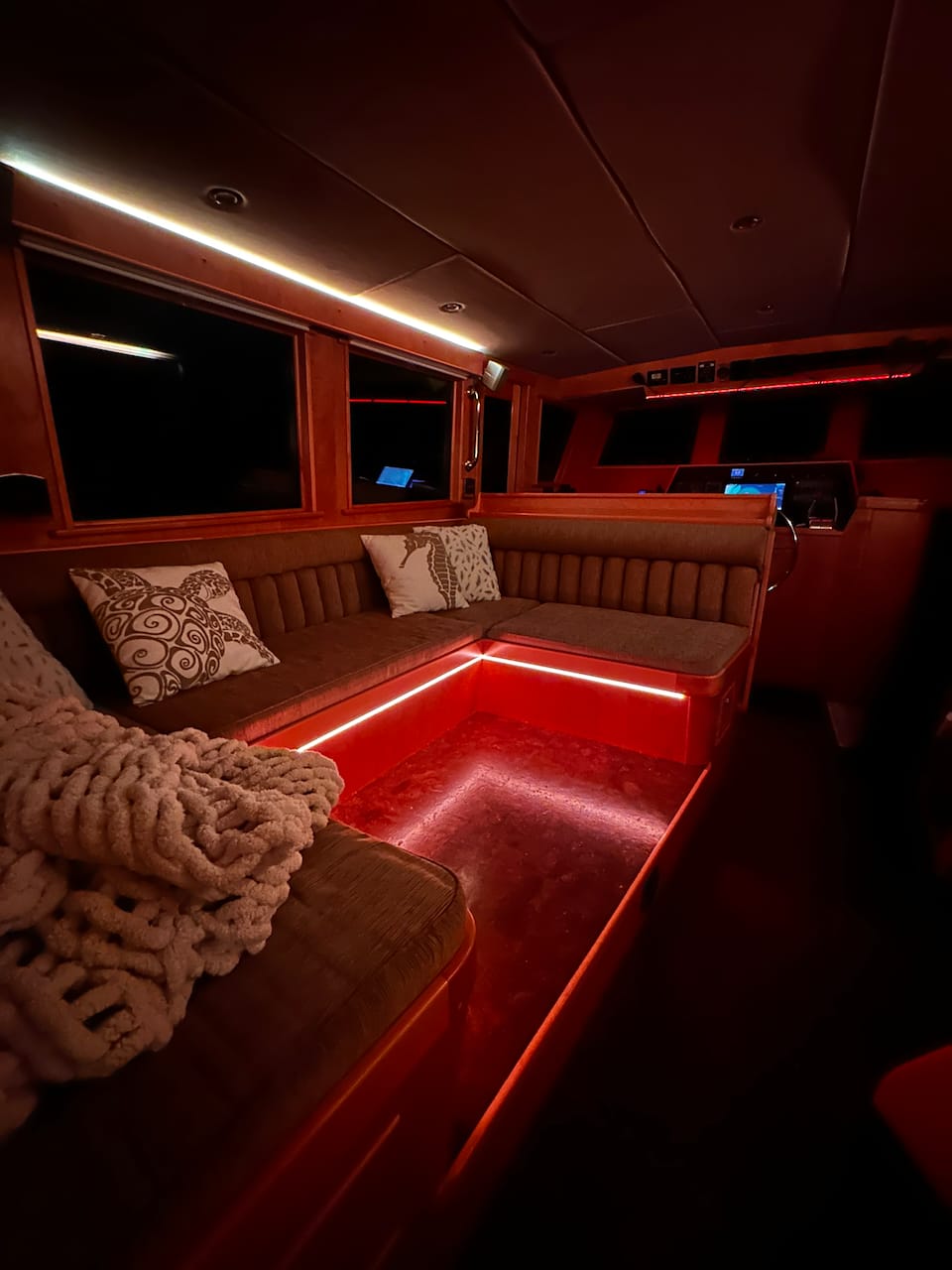

Pilot house and lounge area
- Master Stateroom has a Full Walk-Around Queen, Large On-Suite Head, Separate Shower Stall, Built-In Desk and a Wonderful amount of Storage
- Forward is the Guest Stateroom with a Double Berth Below & a Single Berth Above plus an Adjacent Guest Head
- Hot Water Heater - heated via AC power or the diesel furnace
- Seawater Pro 40 GPH Watermaker (2024)
- Force 10 3-Burner Propane Stove
- Isotherm 1130BA Refrigerator
- Isotherm 1090BC Freezer
- GE Advatium Convection/Microwave Oven
- Stainless steel sink with integrated dishwasher
- LED Lights
- Hurricane Hydronic Cabin Heating System
- VacuFlush Toilets
- Splendide 2000 Washer / Vented Dryer

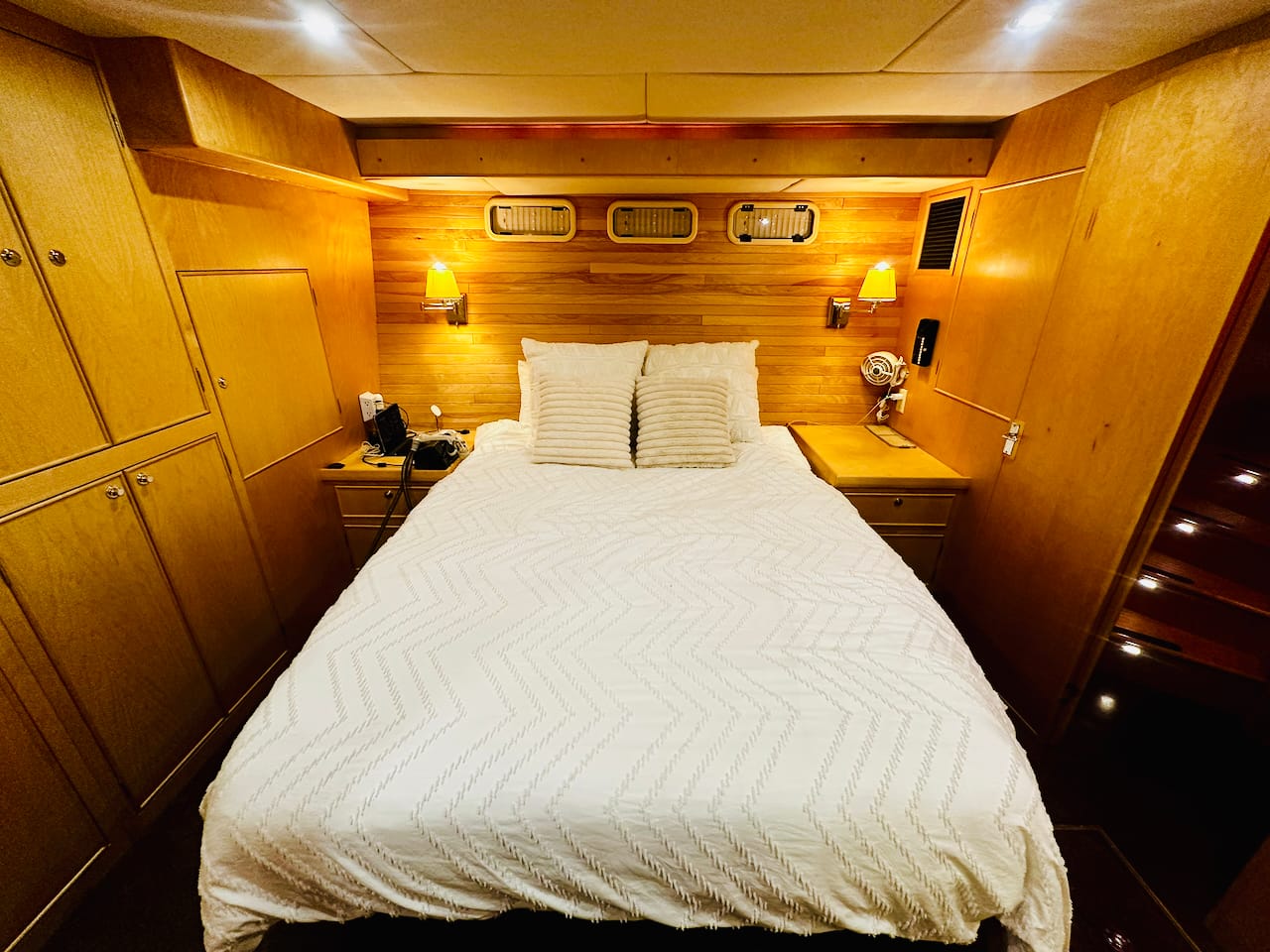

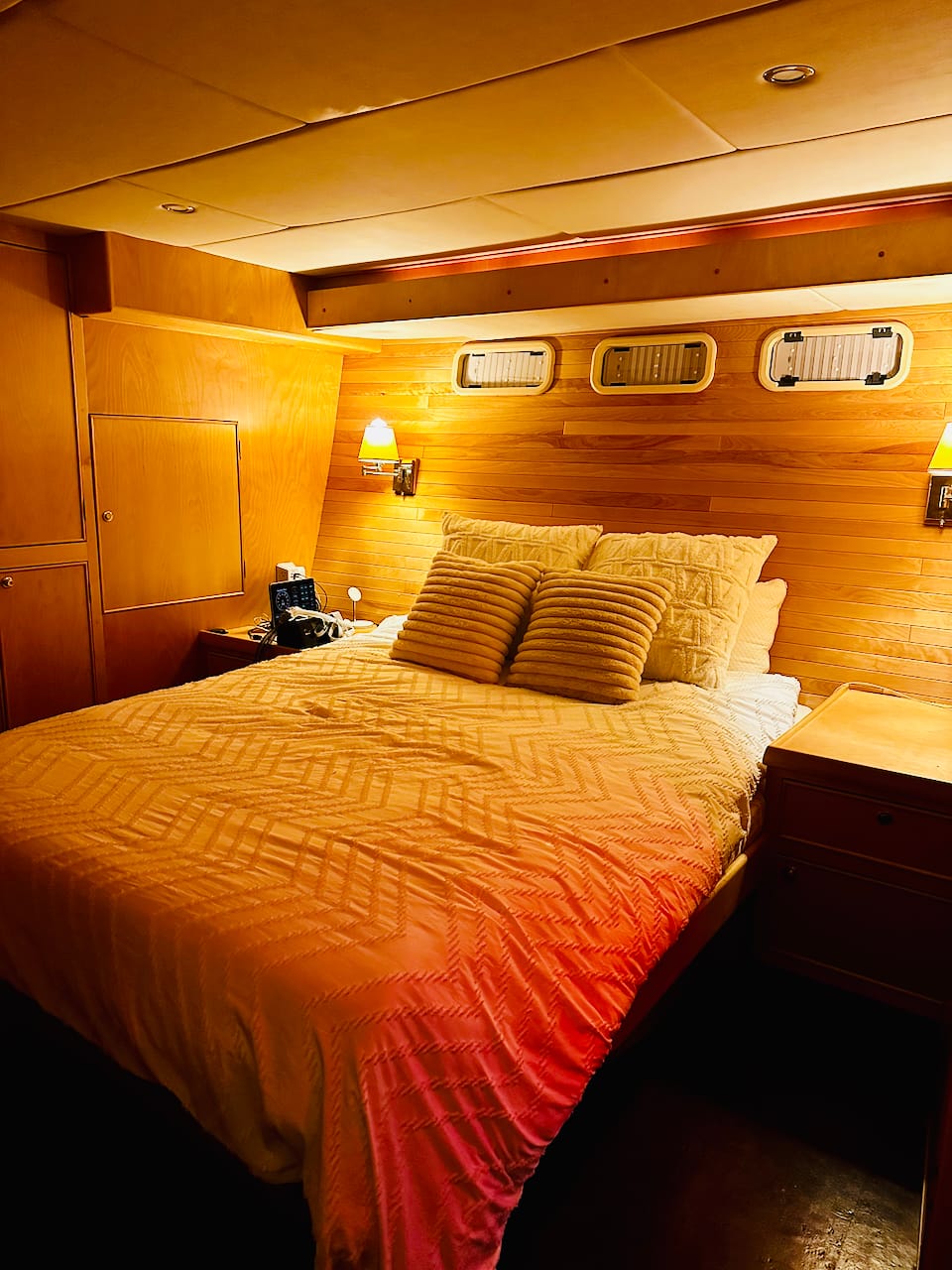

Owners Berth

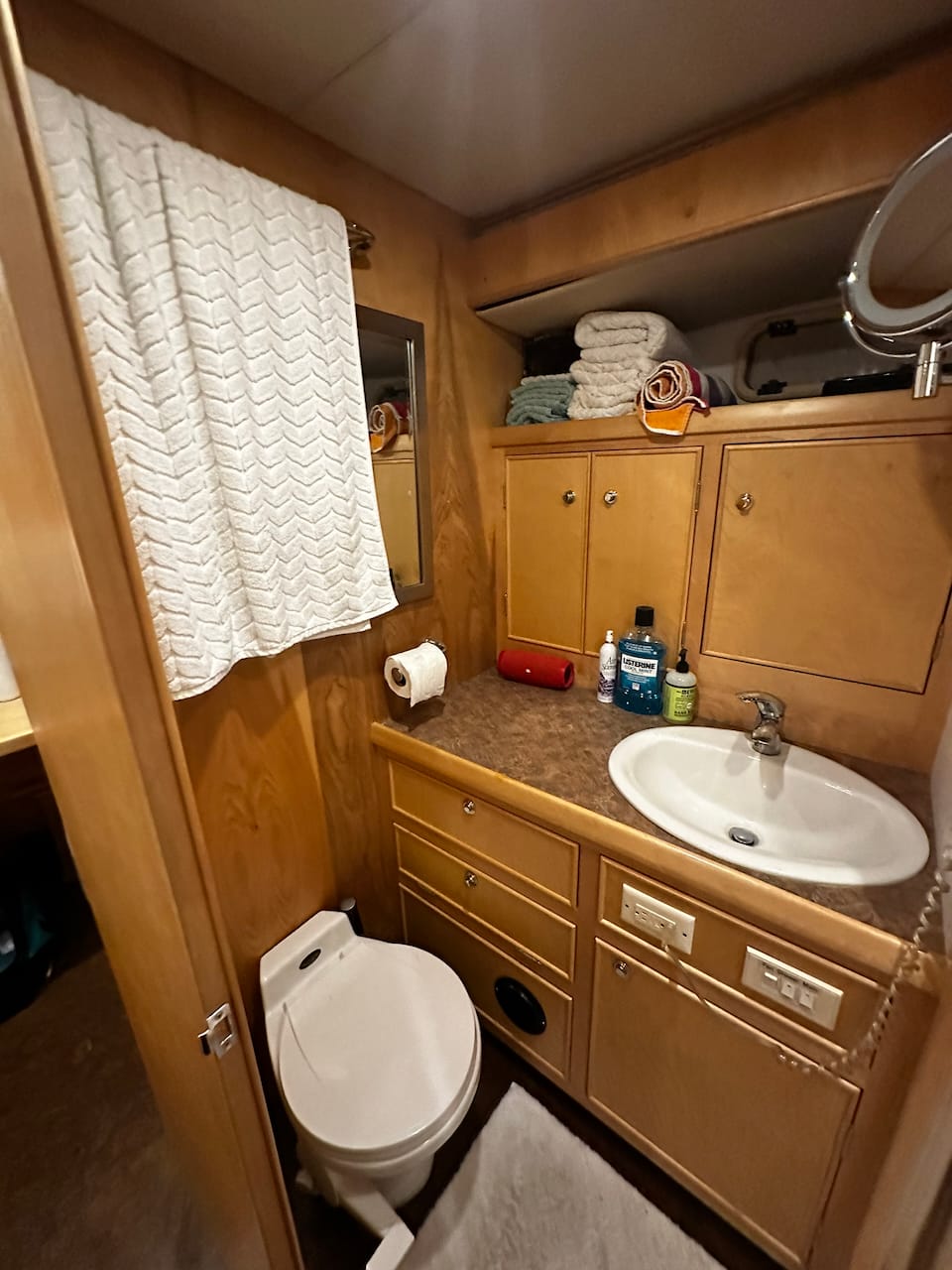

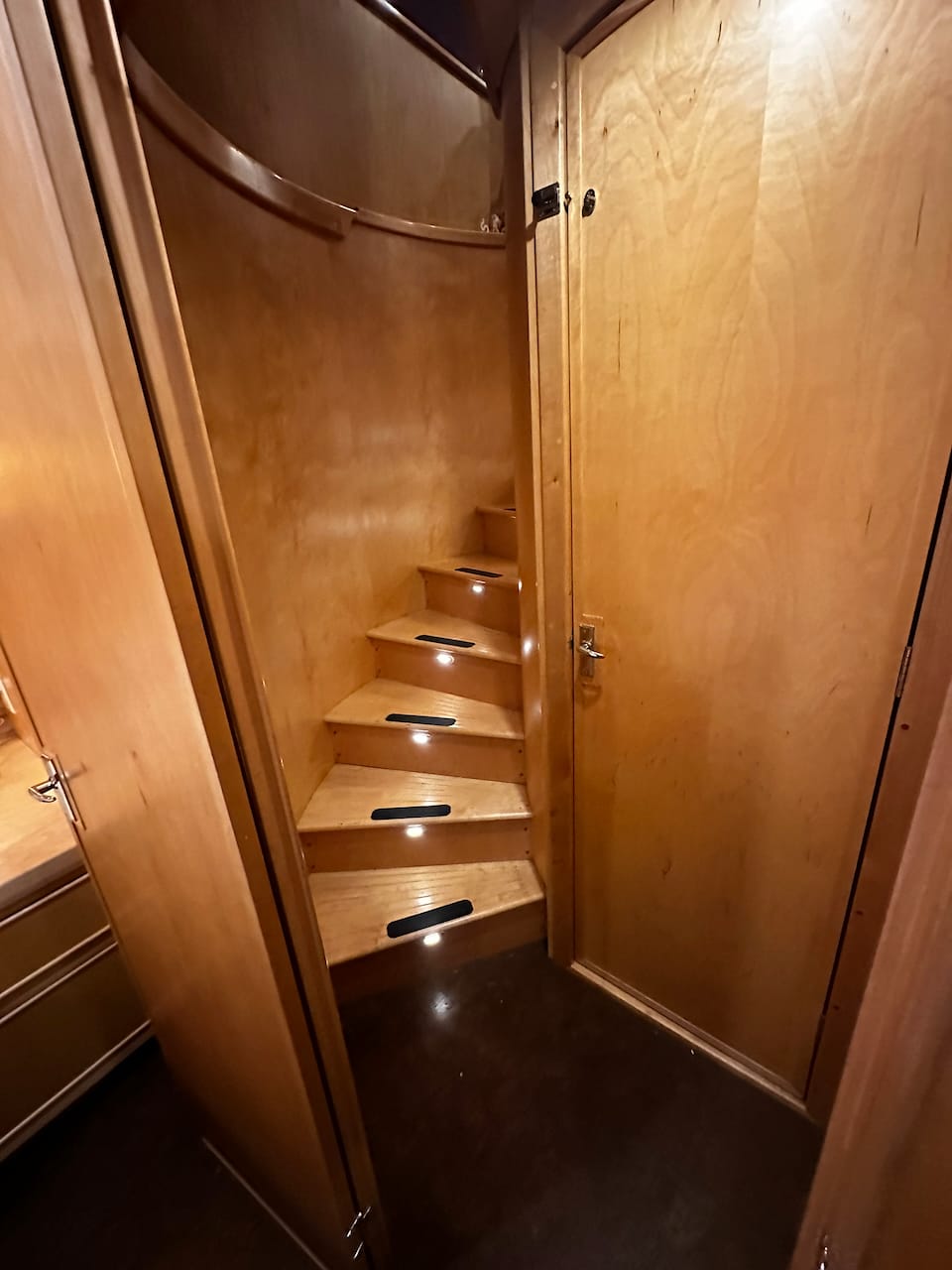

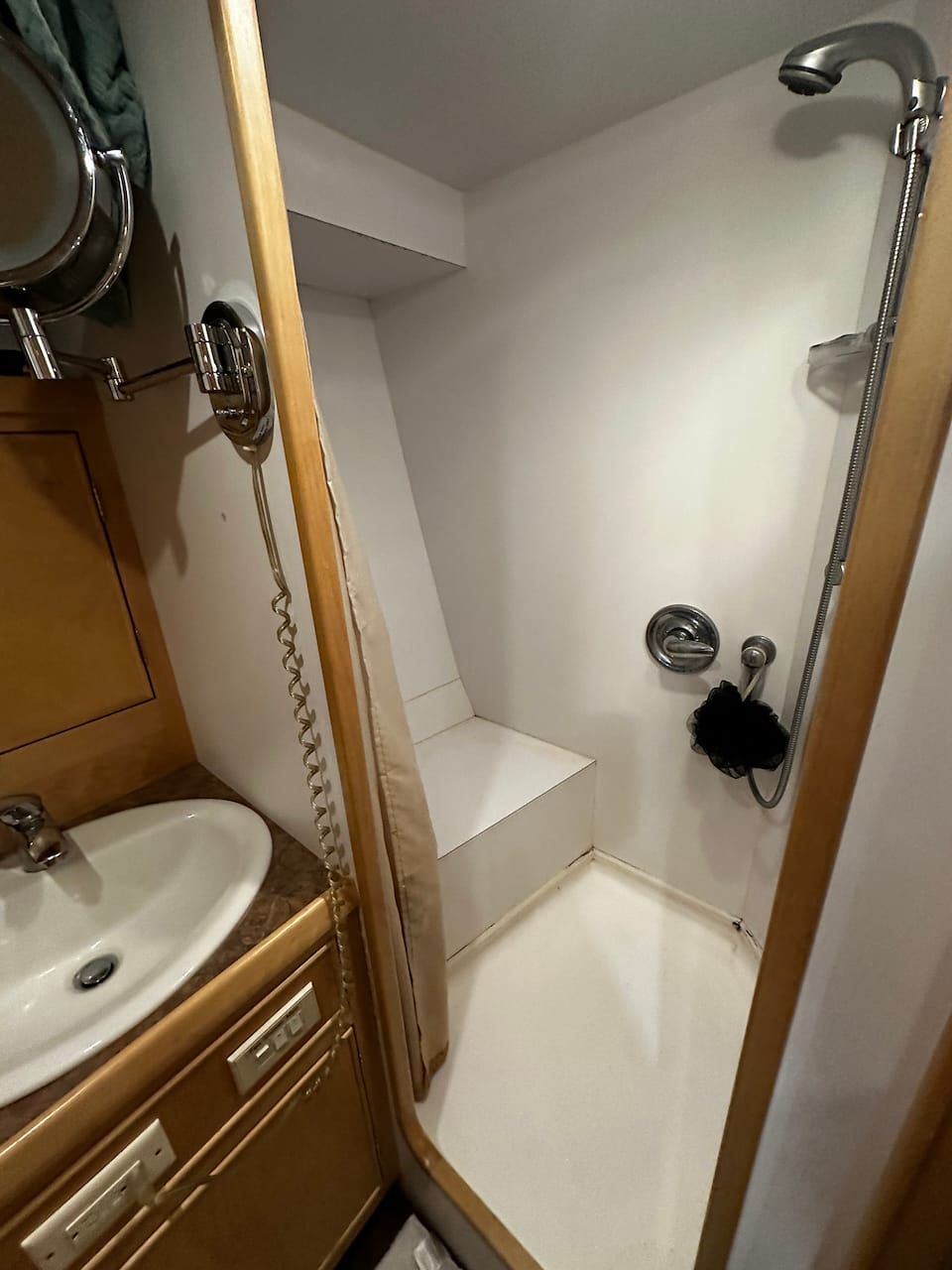

Owners berth, bathroom, and stairway upstairs

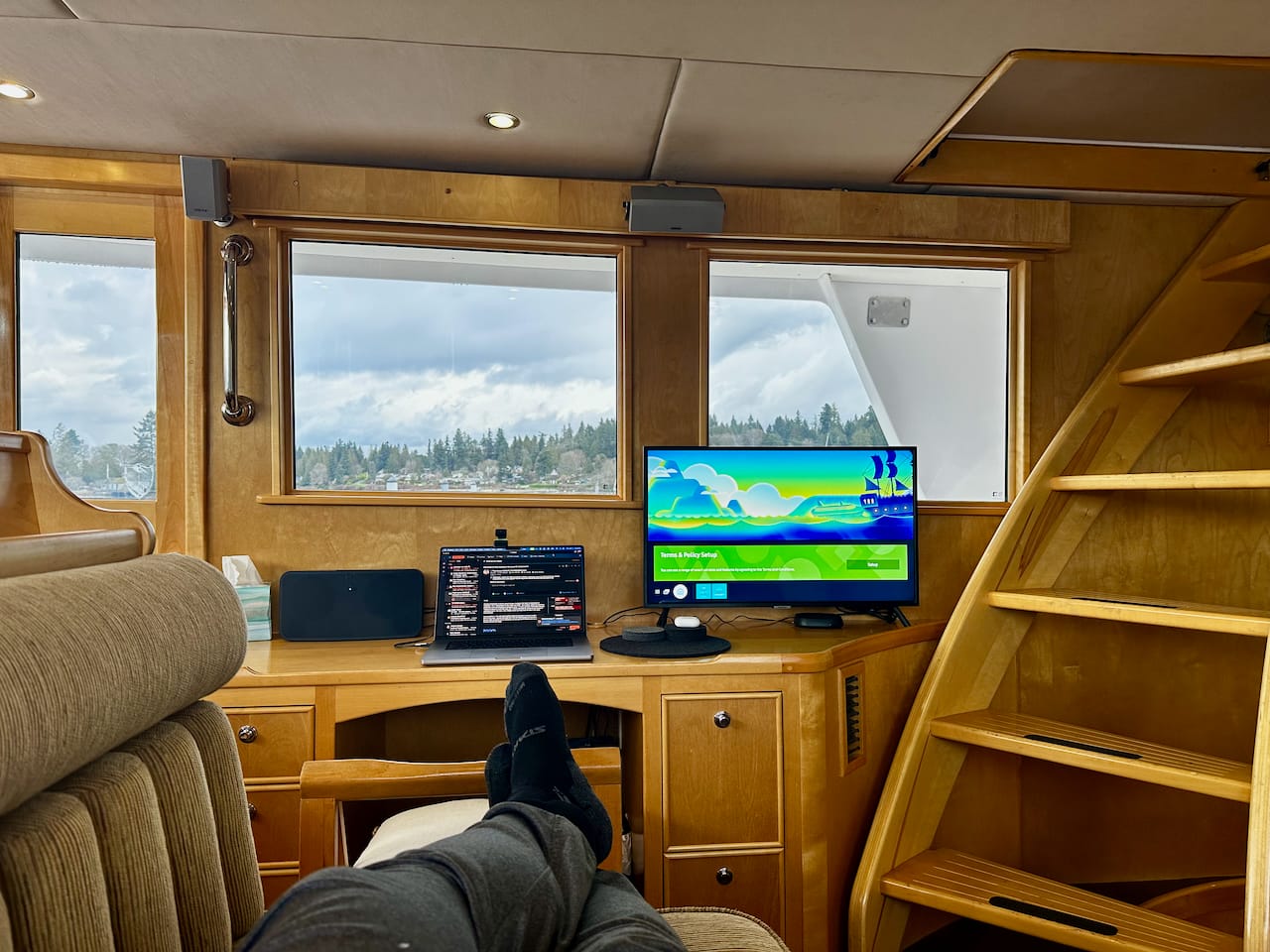

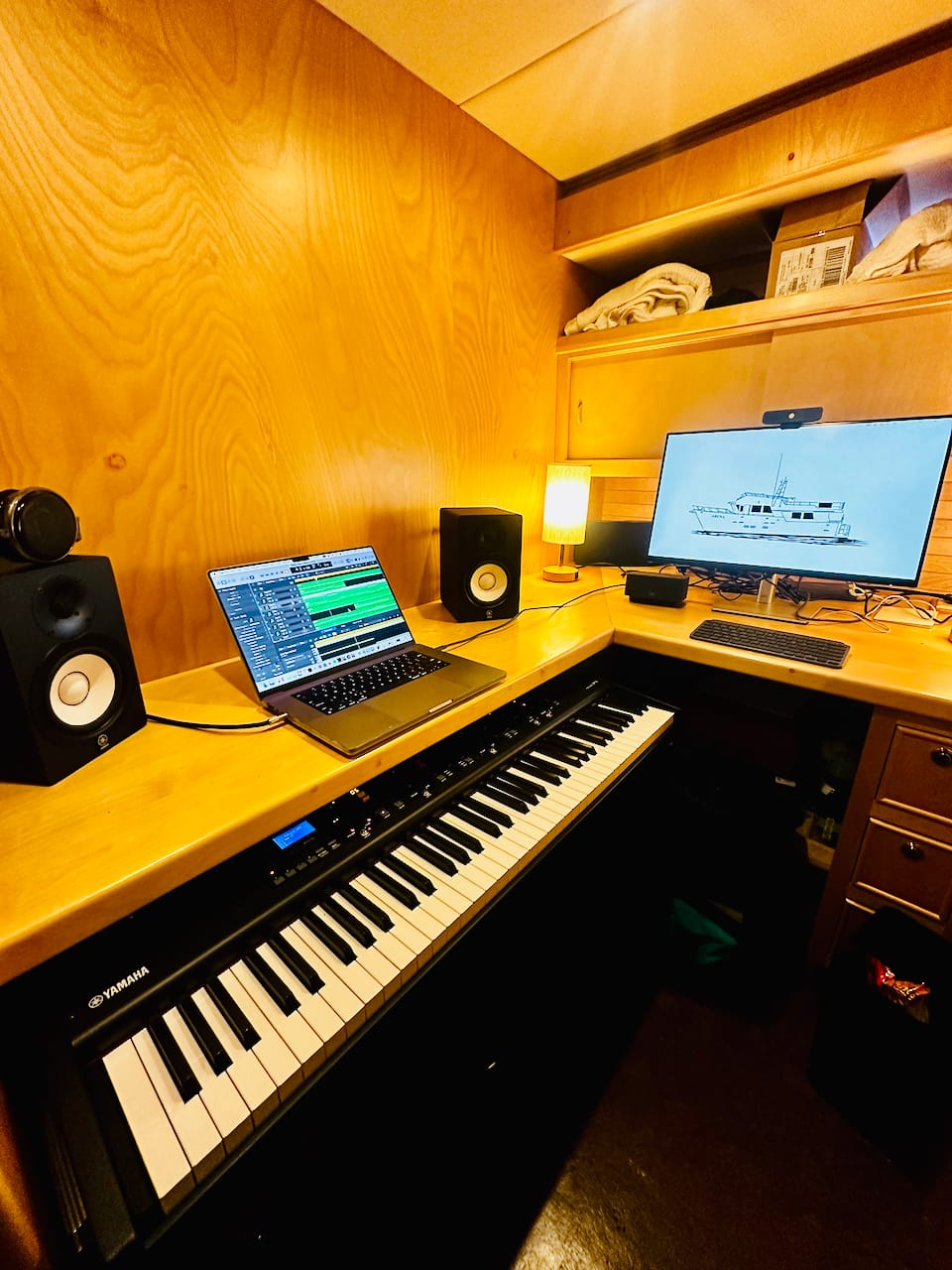

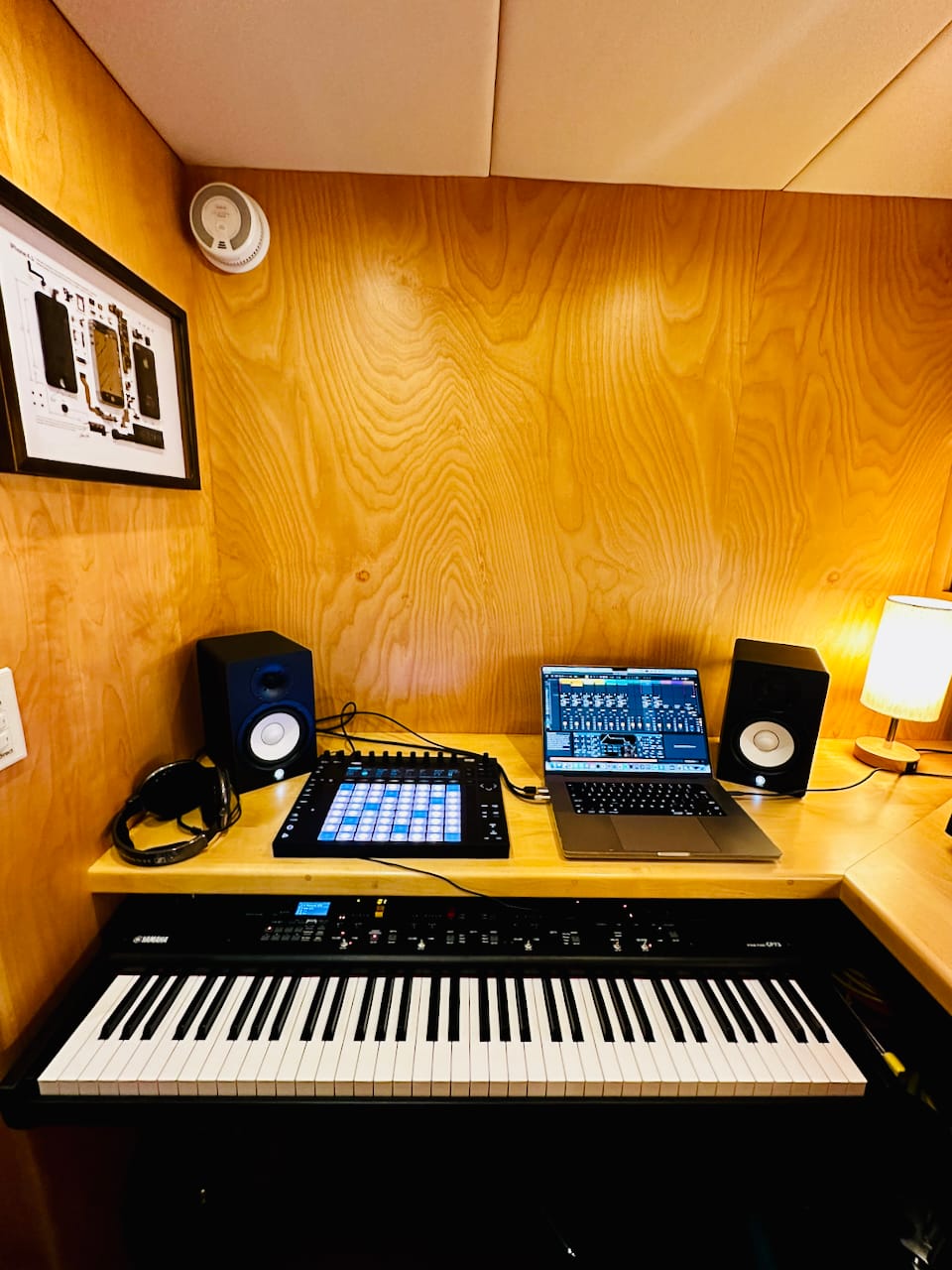

Owners music desk
Mechanical / Electrical
- Single Isuzu A-6RB1T, Freshwater Keel Coolers, 320hp, Direct Drive Inboard Diesel Engine
- (2) Alternators
- (1) Balmar 210amps - House Batteries
- (1) Standard Alternator - Start Batteries
- ZF Marine ZF311A transmission

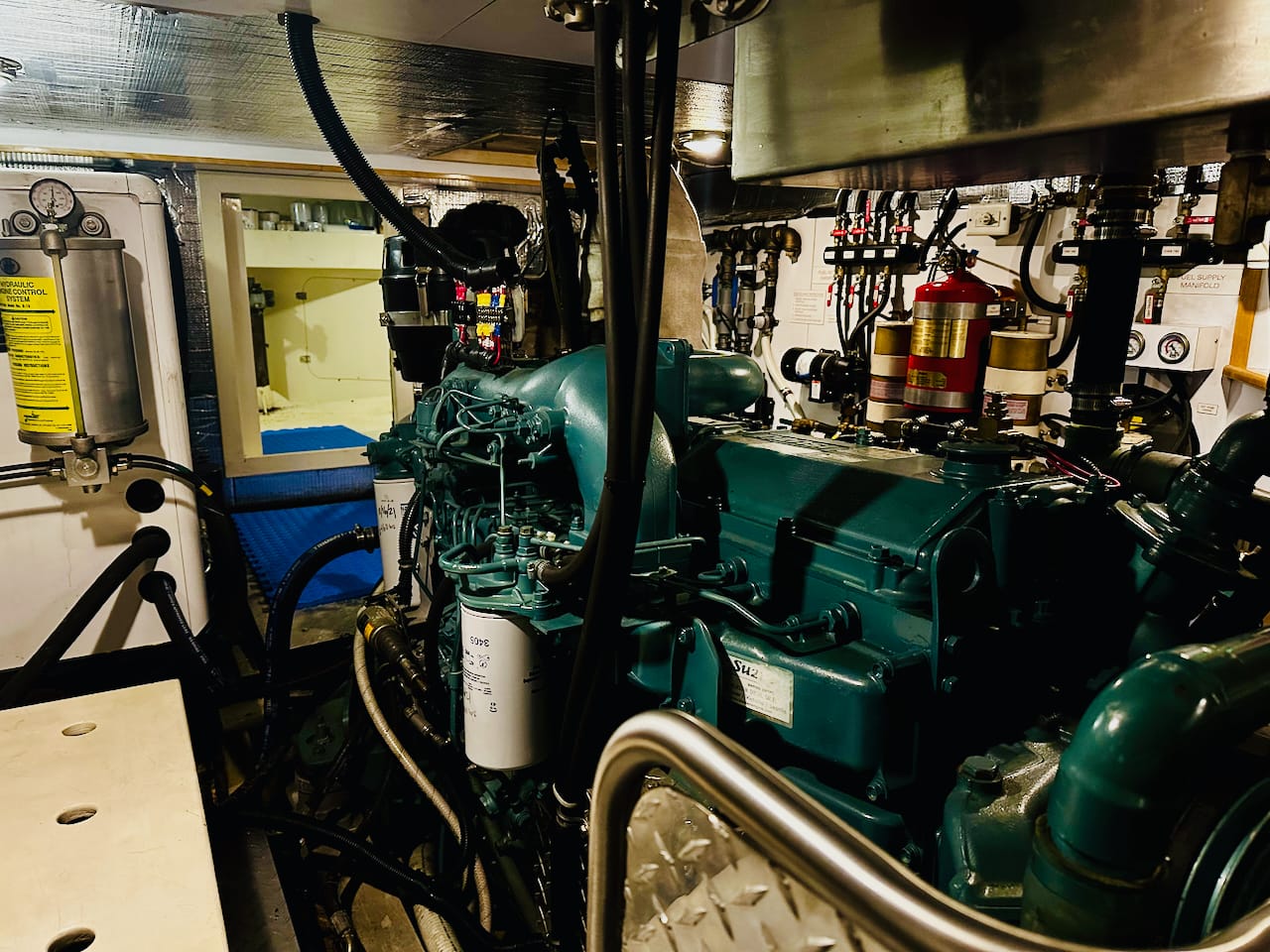

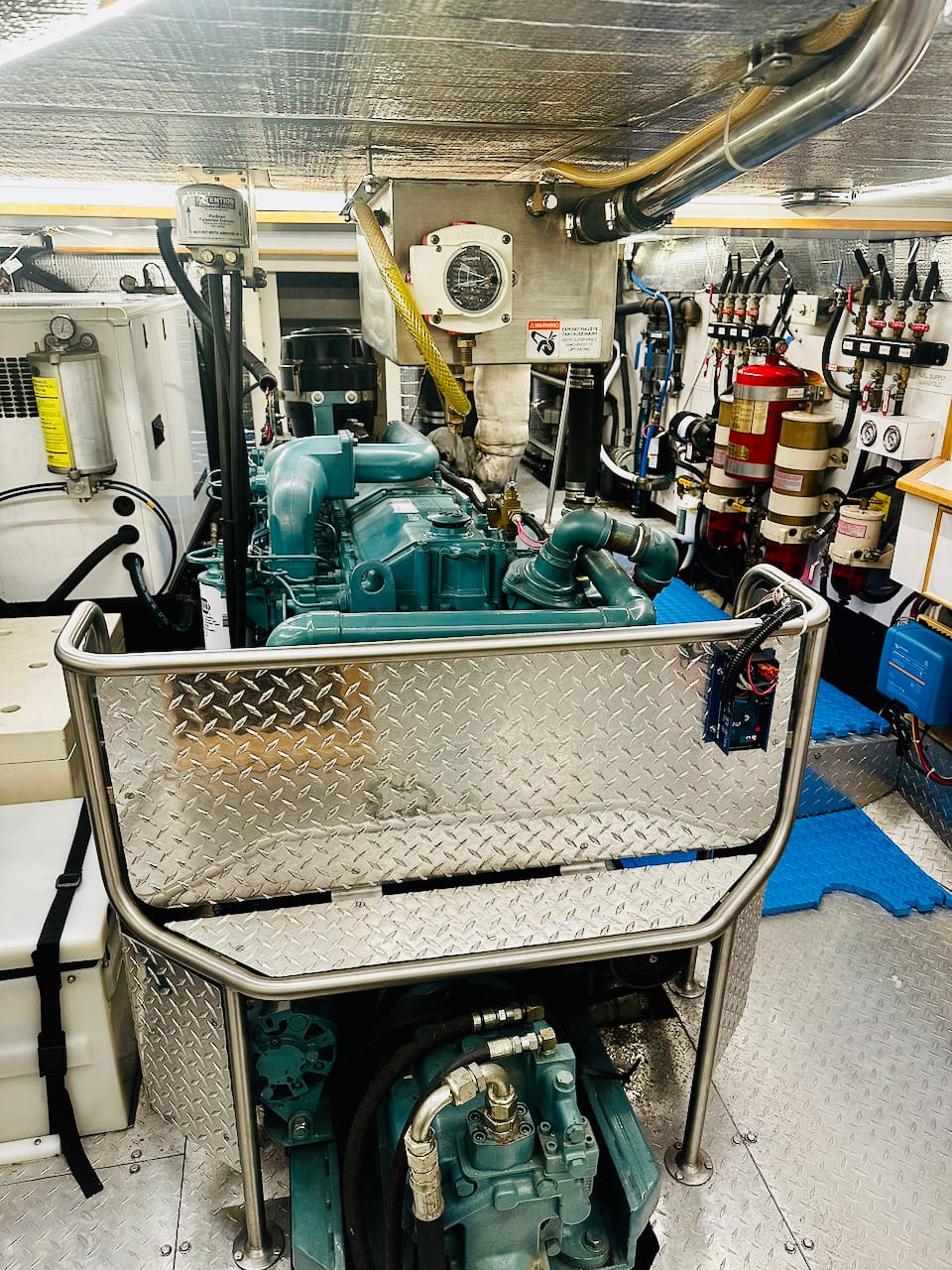

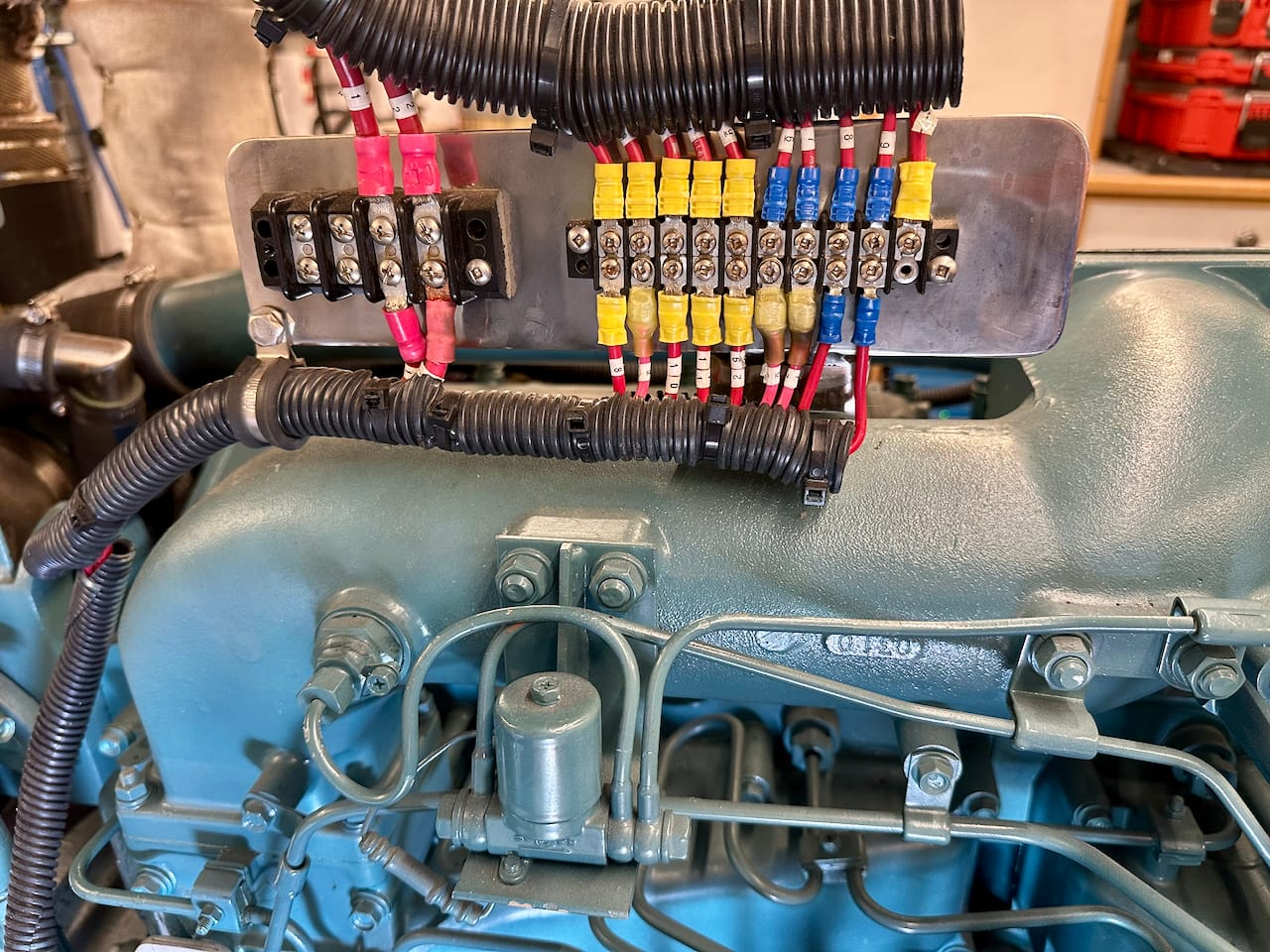

Aruna's engine underway
- Engine Room Sea Chest (reduces the number of thru-hulls)
- Flo-Scan Fuel-Use Monitor
- PSS Dripless Shaft Seal
- Shaft Size - 2 1/2"
- 4-Blade Propeller - 30 x 28
- Shoe Under Propeller

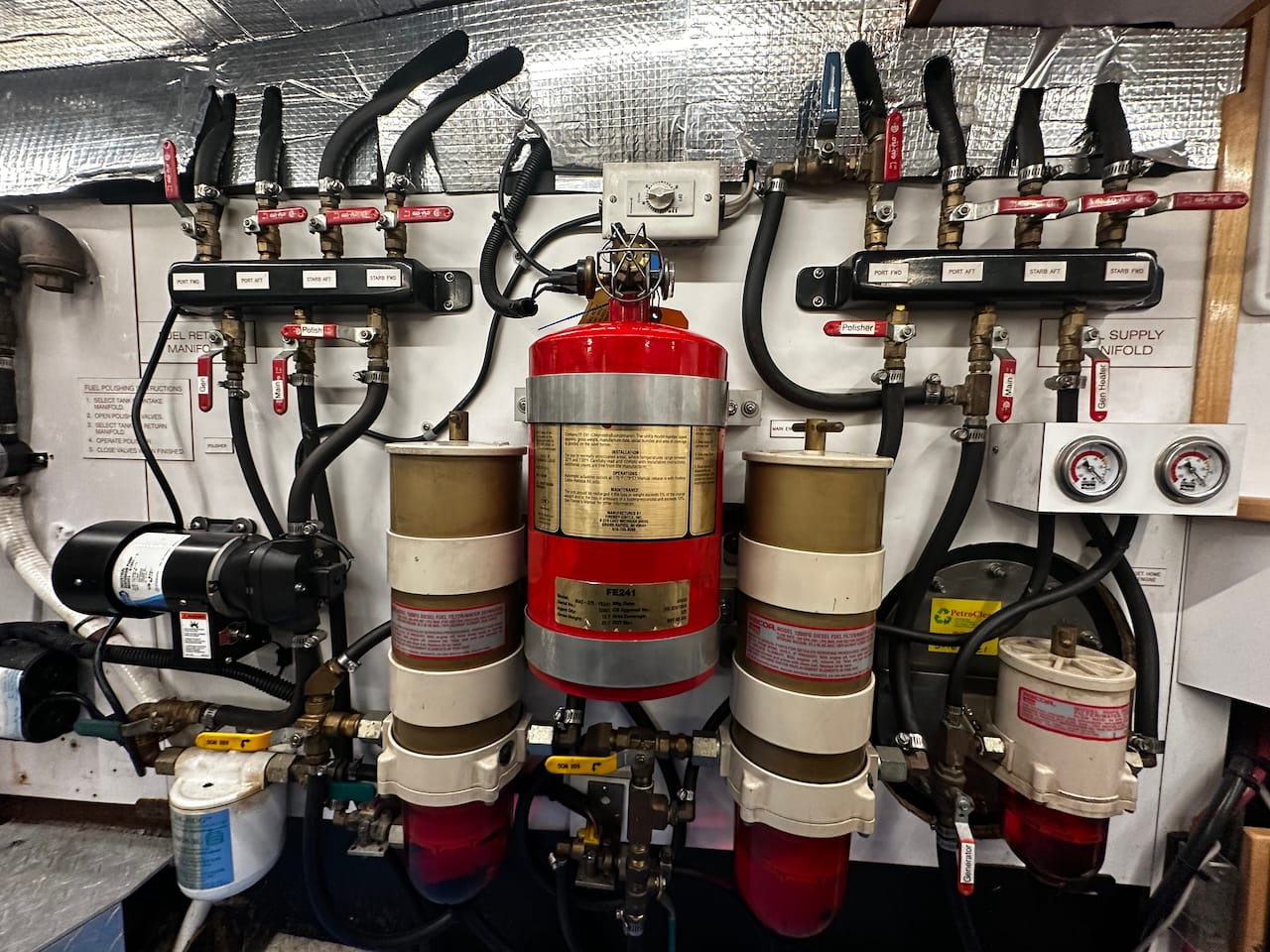

- De-Bug Fuel Polishing System
- Oil Change System for the Main & Generator
- Hydraulic Stabilizers
- Bilge Pumps - 3 Automatic 12Volt - 3700 Gallons per Hour each
- Northern Lights PX316K1 16KW generator
- Key Power - PTO on Generator for Get-Home Hydraulic Drive Shaft 1 1/4" with Maxi Feathering Propeller
- Key Power Hydraulic 25hp Bow & Stern Thruster
Navigation / Communication
A full article on the entire navigation and NMEA 2000 networks is in the works. Similar to my past boats, the network is considerable and details will be posted here when I'm done!
- TimeZero Professional v5
- Furuno DRS series radar
- Furuno SCX-20 GPS / Satellite Compass
- Standard Horizon Matrix AIS+ VHF
- Vesper Cortex AIS / VHF with remote handhelds
- ICOM IC-M502 VHF
- ICOM IC-M802 SSB
- Raymarine Autopilot with Remote
- 4' Ritchie Compass
- ITT Jabsco Remote Control Spotlight
- Newmar Intercoms

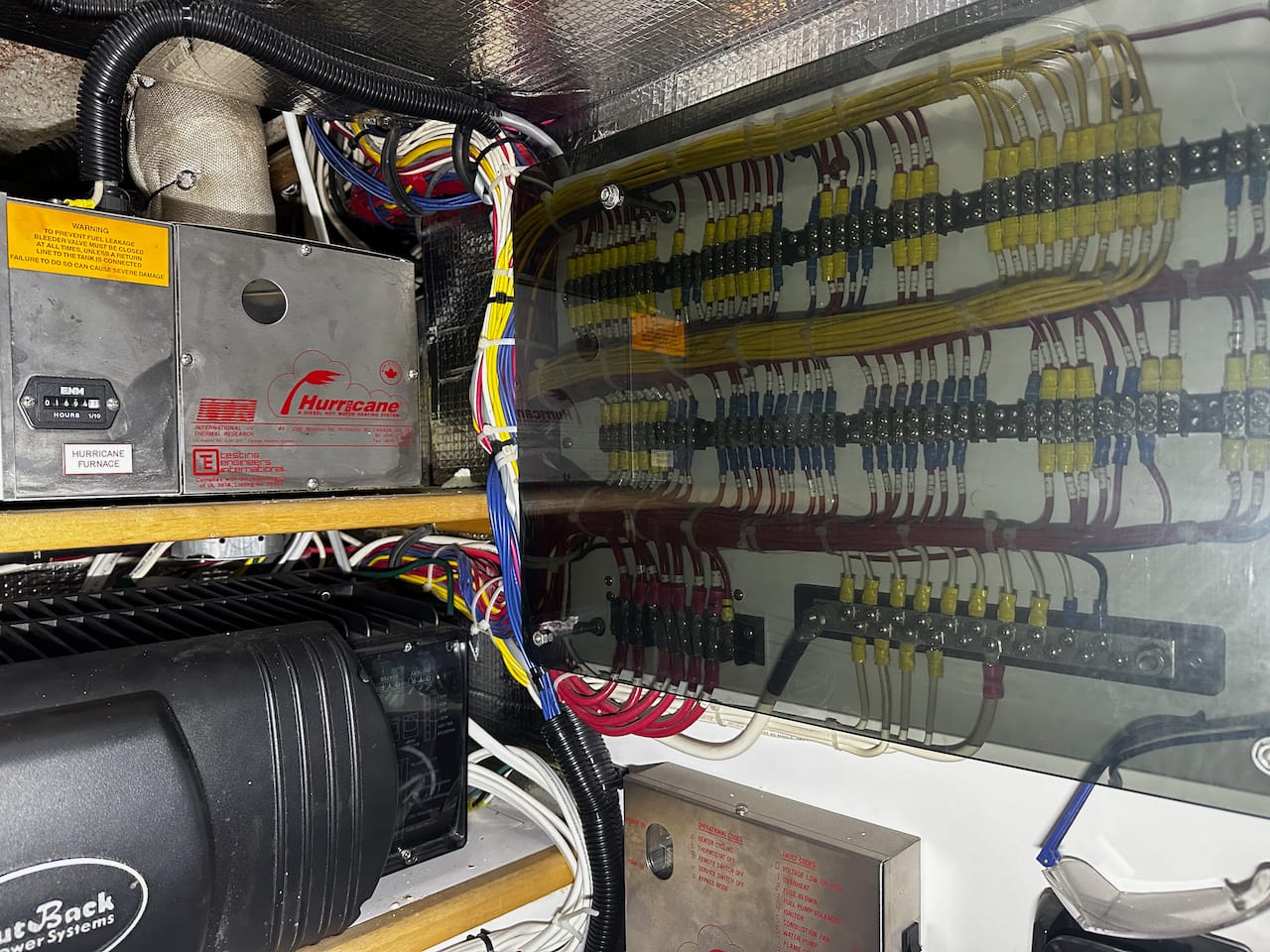

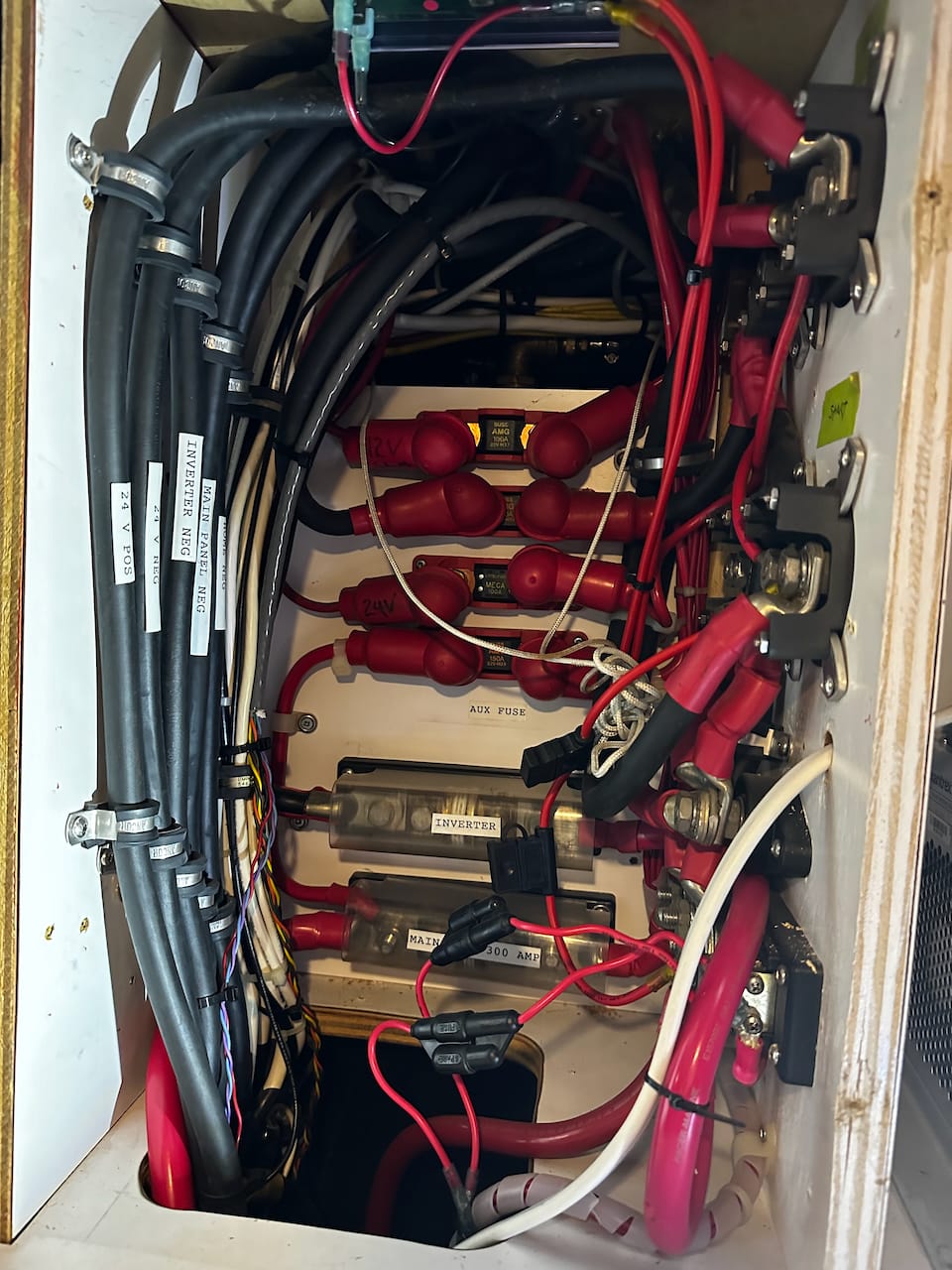

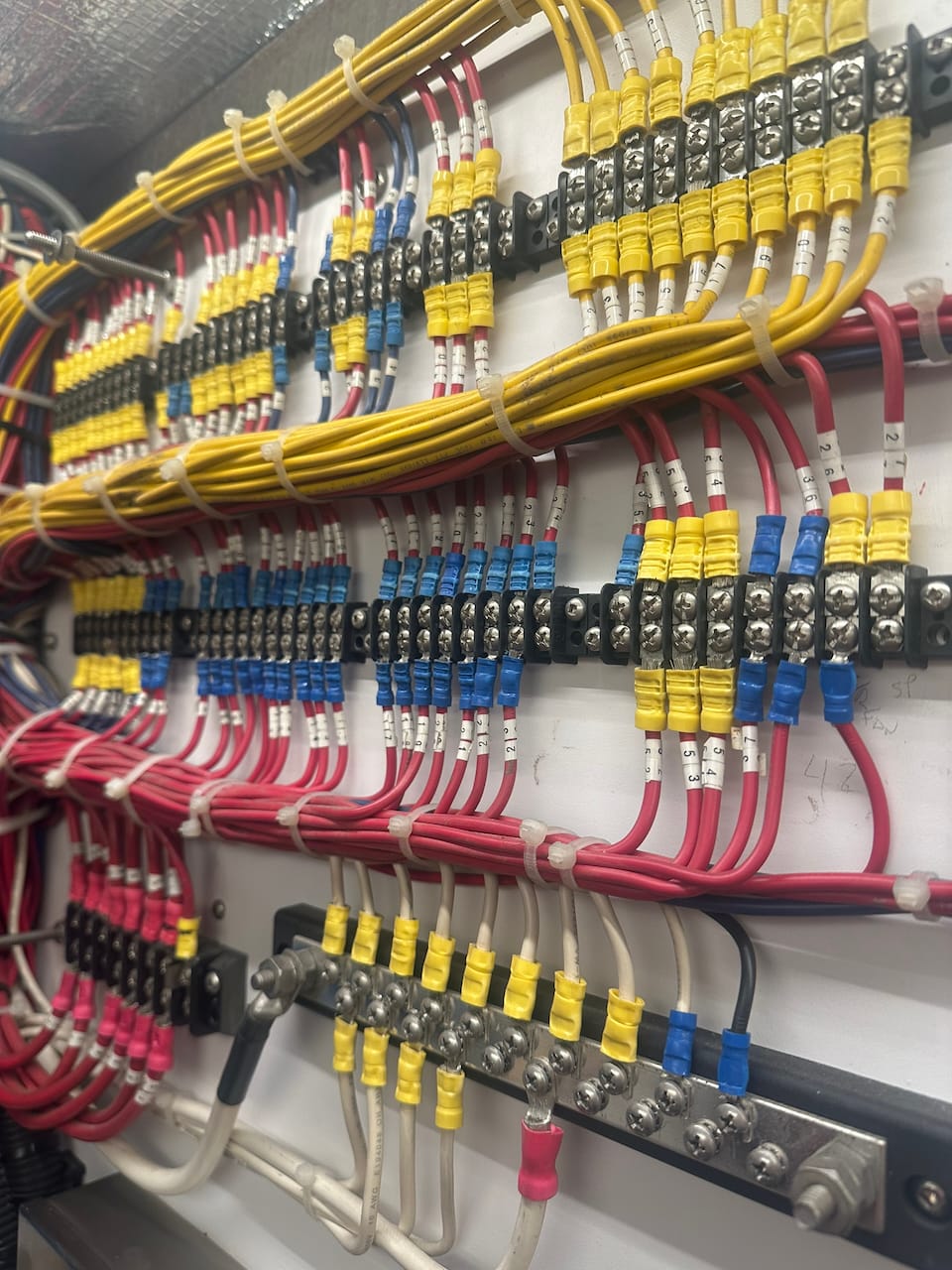

Electrical
Entire electrical system was upgraded in early 2026. More details on the interim system below:
Steve Mitchell
- Victron power system with 2x MultiPlus-ii inverters, Skylla charger, Cerbo, Epoch batteries, and more - more details posted here after the next article comes out!

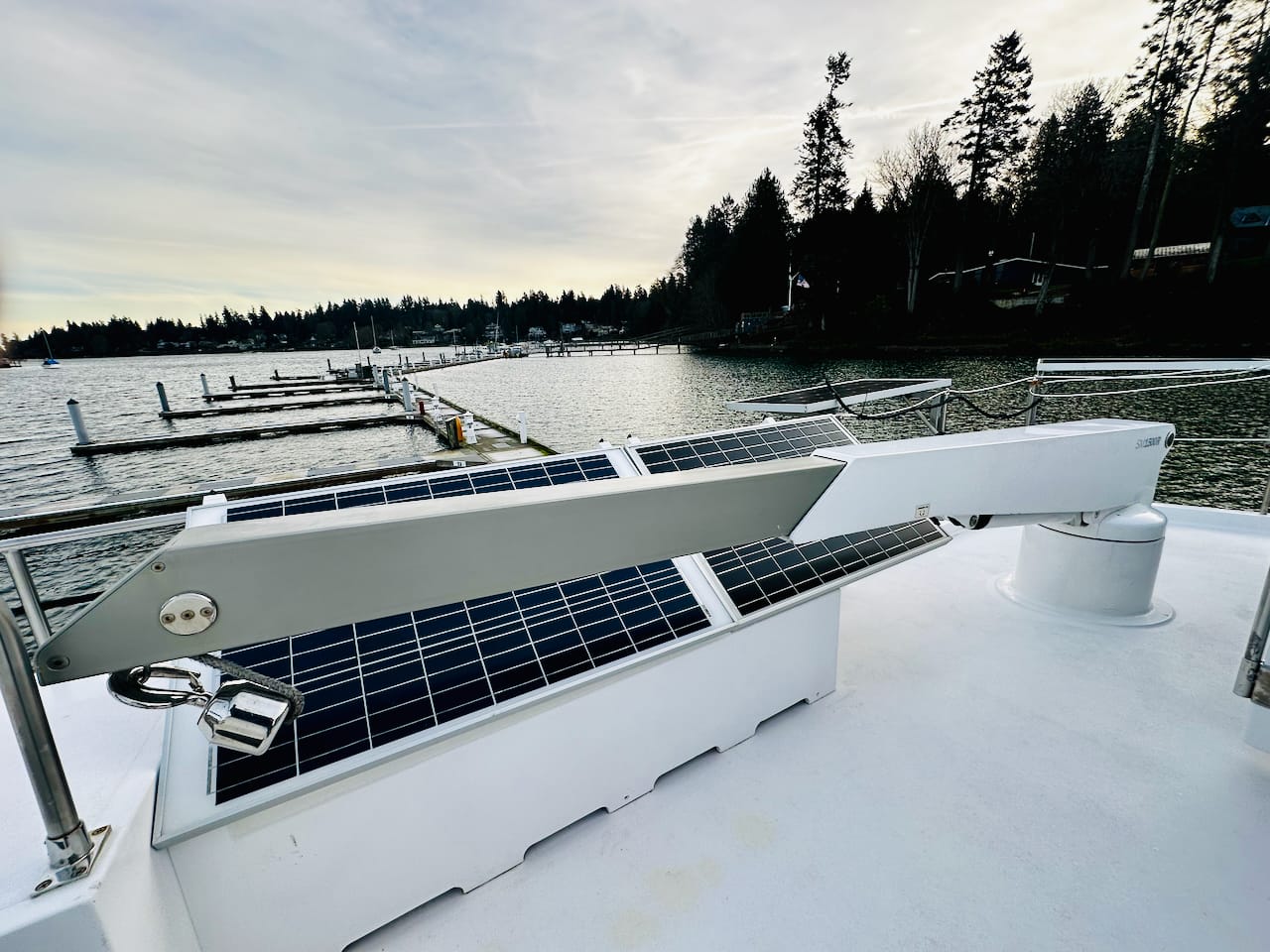

- 8x 200W bi-facial solar panels connected to 2x Victron MPPT controllers - article soon!
- Galvanic Isolator
- 50amp 240Volt Shore Power Service
- ProMariner Yacht Corrosion Monitor
Ground Tackle

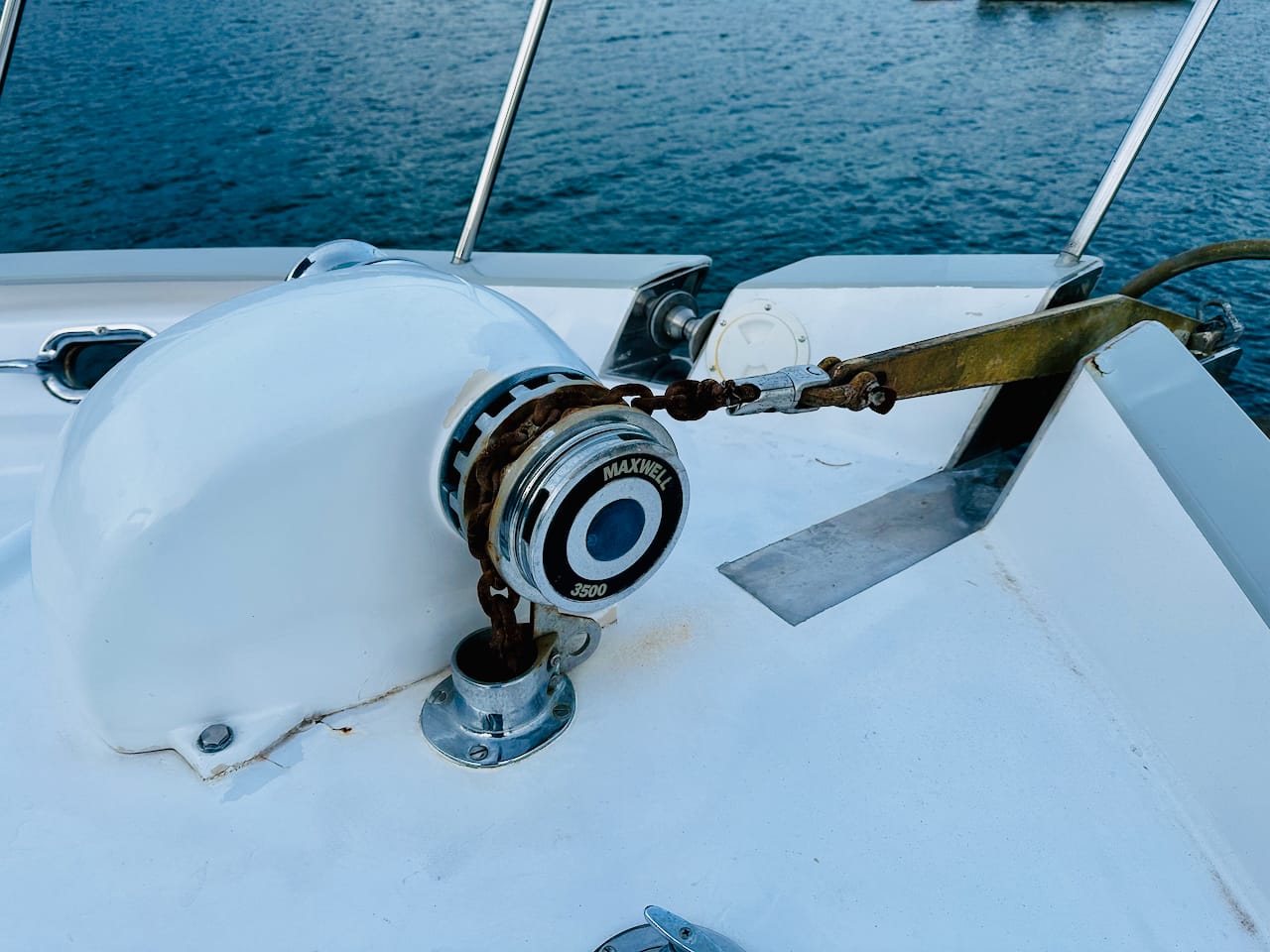

- Maxwell 3500 Hydraulic Windlass
- Rocna 45 kg / 100 pound Anchor
- Bruce 30 kg / 66 pound Anchor
- 400' 3/8" Chain
Safety

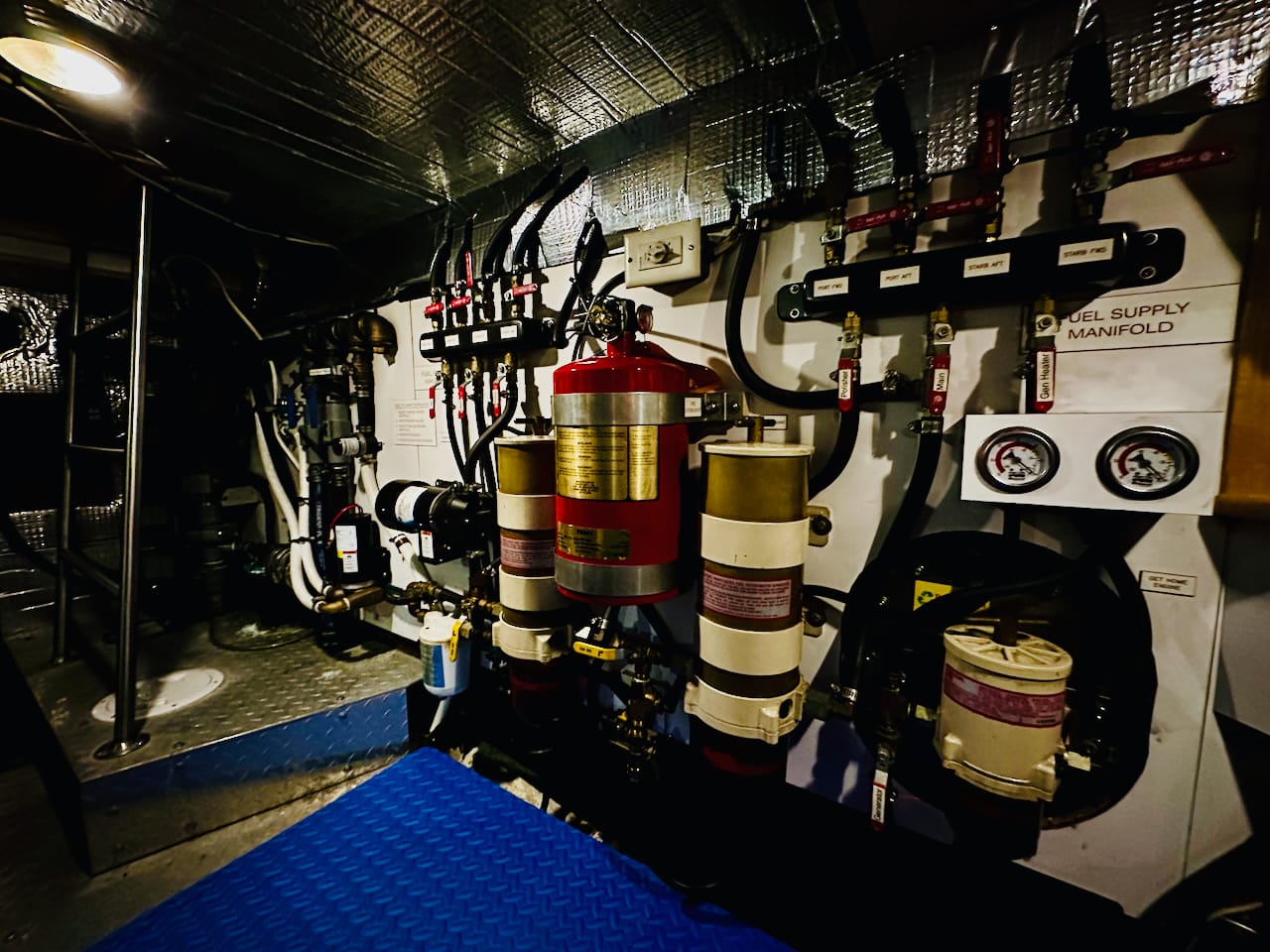

- Fireboy FE241 Model MA2-375-FE241 Engine Room Fire Suppression System
- Life Lines Steel Bulwarks with Rail Atop
- Propane Solenoid Switch
- Propane Vapor Detector
- Navigation Lights
- Overboard Rescue Unit Located on Swim Platform Railing
- Fire Extinguishers
- 2-5lb Dry Chemical Type B:C Size 1
- 2-1/2lb Dry Chemical B:C Size1
- Life Jackets - 10
- Throwable - 1
- Flare Kit
- Horn
Miscellaneous

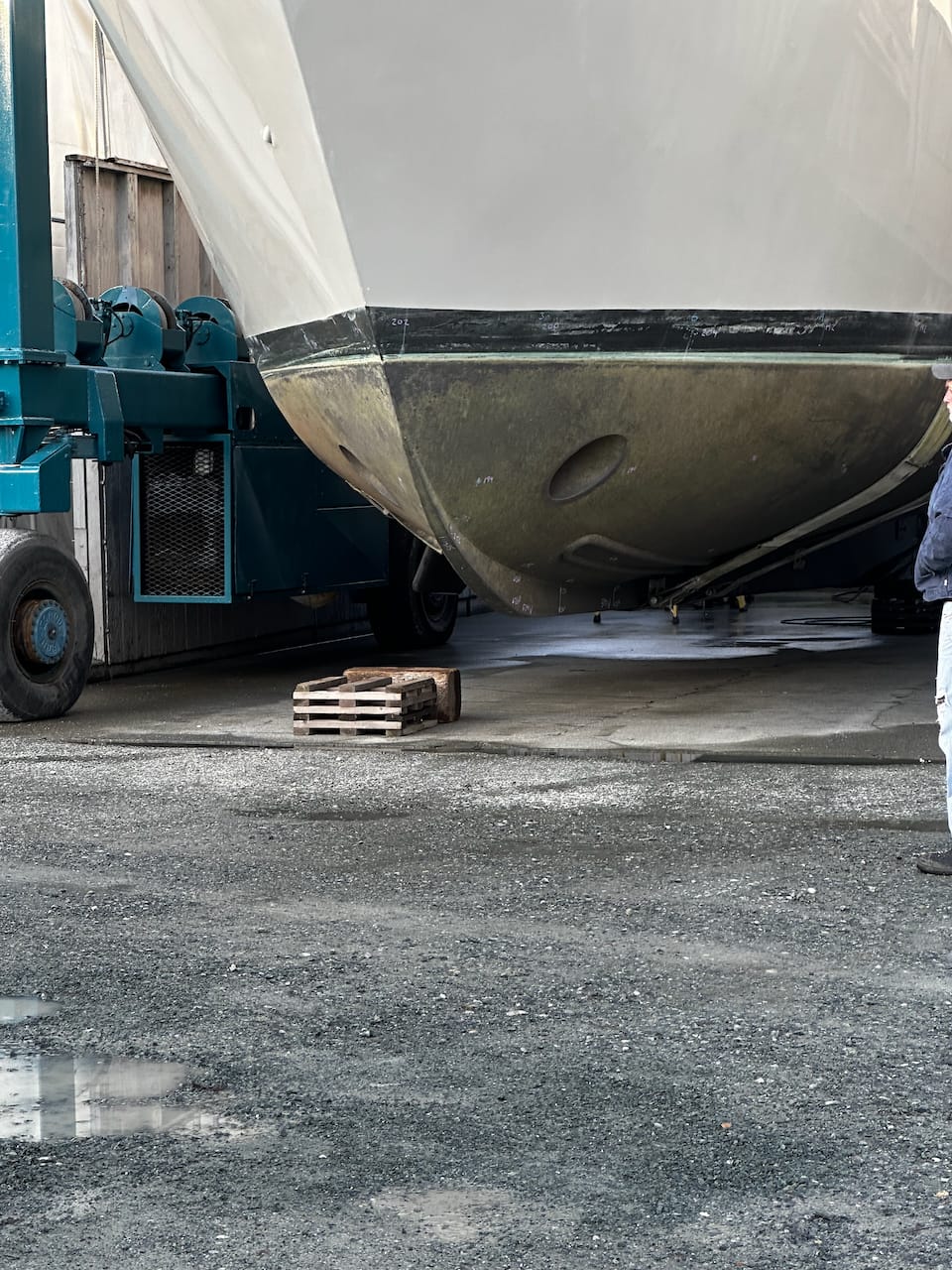

- Bottom Paint - Sandblasted to Bare Metal, Multiple Coats of Epoxy & Bottom Paint - NEW Spring 2023

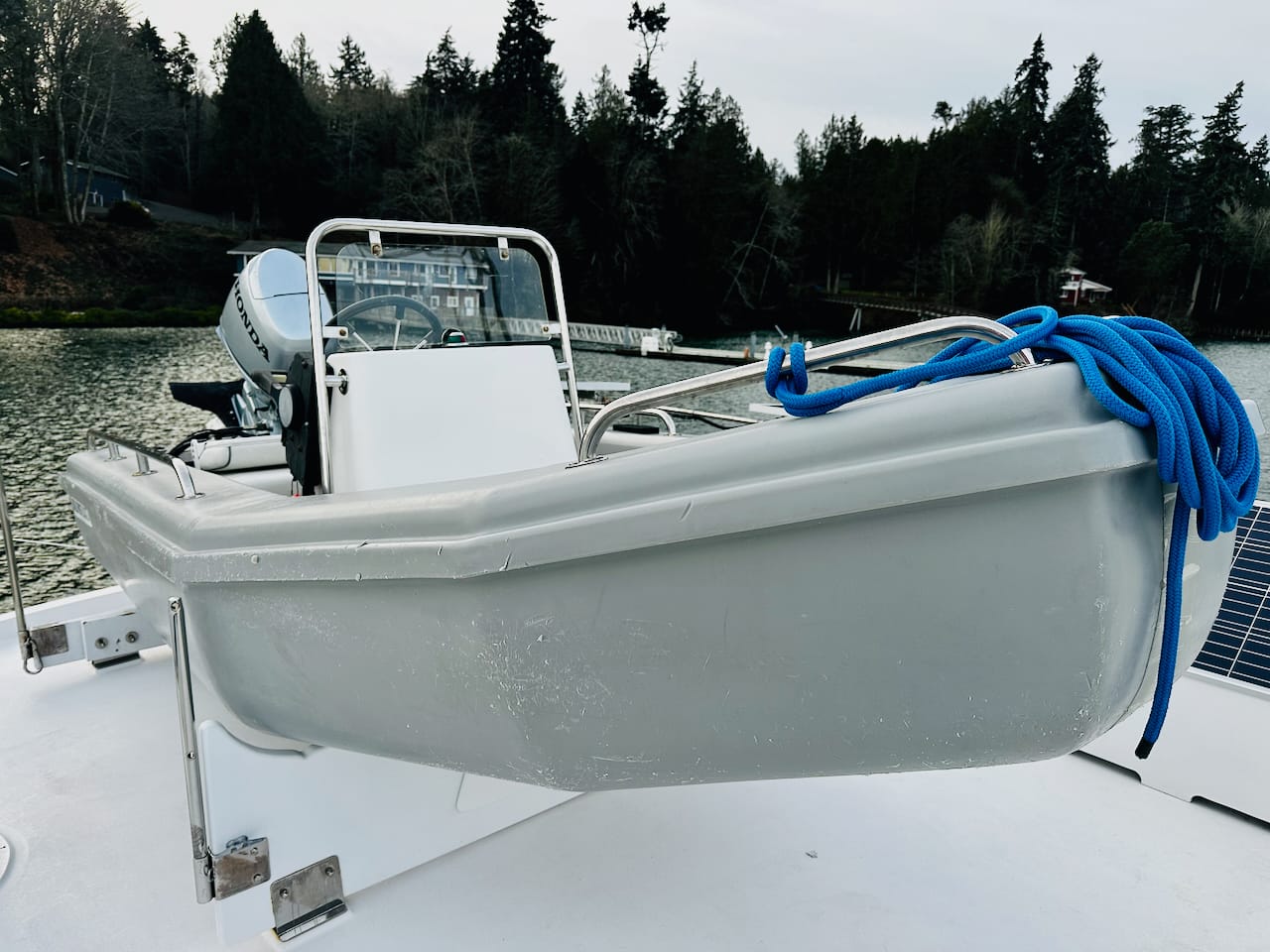

- Bull Frog 11' 6" Hard Bottom Dinghy
- Honda 30hp Outboard
- Steel Head Marine SM1500R Dinghy Davit

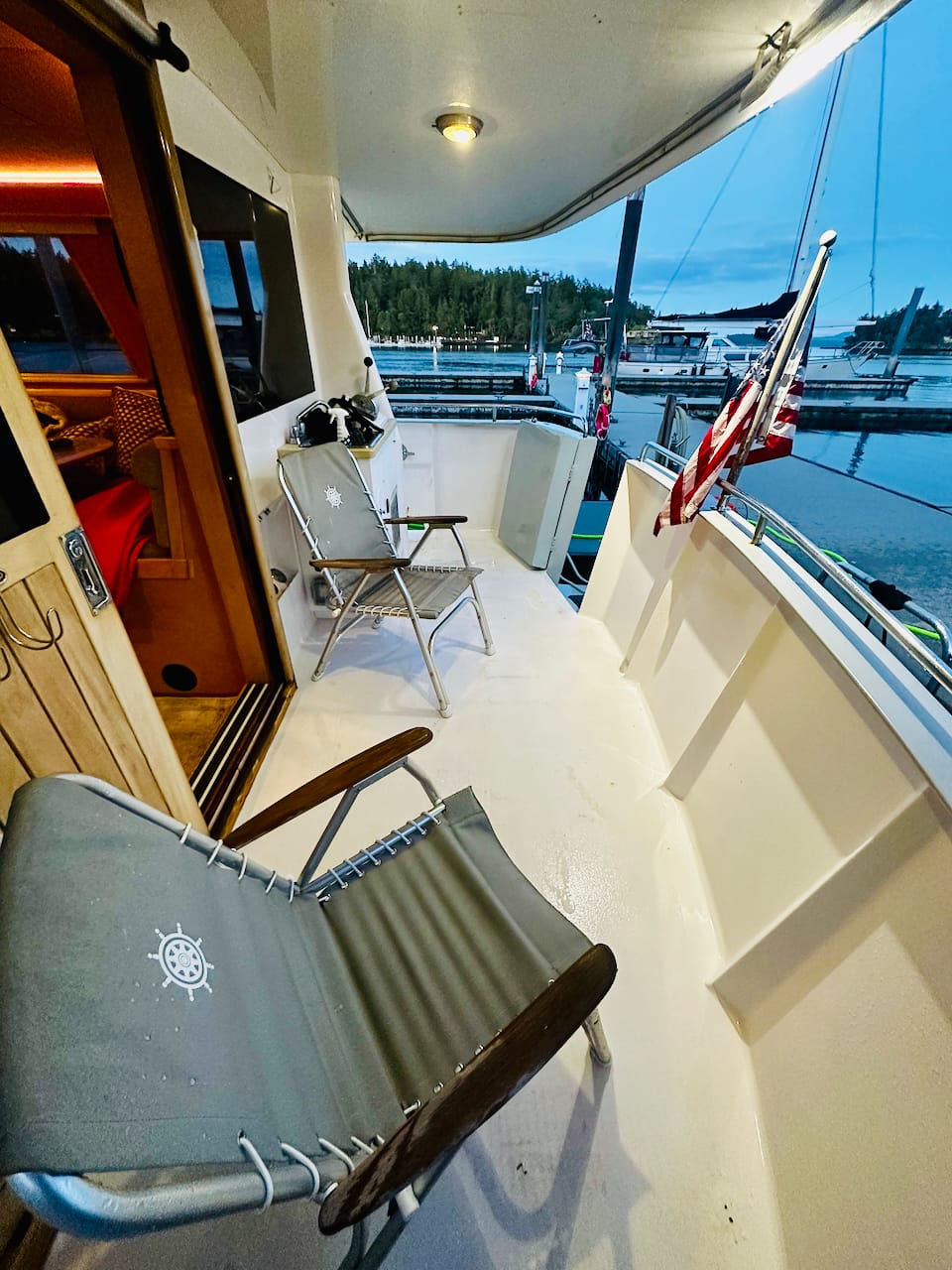

- Docking Station in Cockpit
- Flybridge Bimini Top
- Freshwater Wash-Down Forward (Can be Converted to Saltwater Wash-Down)
- Electric Downrigger
- 12Volt Air Compressor
